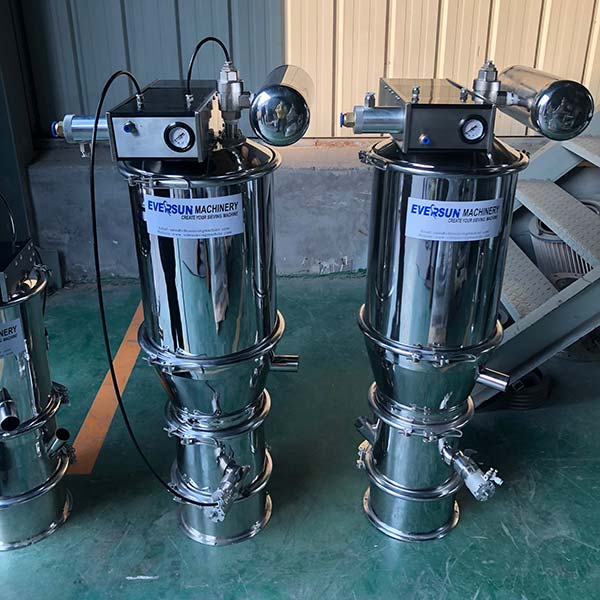

Pneumatic vacuum conveyor
The pneumatic vacuum conveyor is a conveyor that uses vacuum suction to transport granular and powdery materials. It is widely used in food, feed, coating, pharmaceutical, chemical, ceramic, agricultural production and scientific research, and other fields.
It uses the negative pressure airflow generated by the vacuum generator to suck the material from the feeding port and separate the gas and material in the pneumatic vacuum conveyor. The clean air passes through the filter element and is discharged into the atmosphere through the vacuum pump, and the materials are separated and fall into the silo. When the loading time arrives, the vacuum valve is closed, the unloading valve is opened, the material enters the designated equipment, and the blowback airbag automatically cleans the filter element to ensure the efficiency of the next cycle. Auxiliary unloading devices such as pneumatic vibrators are activated to assist in unloading. After the feeding is finished, it enters the suction state again.
- Description
- Get quote
Description
Features of Pneumatic vacuum conveyor
1) Safety: Pneumatic vacuum conveyor is driven by vacuum, safe and explosion-proof;
2) Save trouble: do not need manual handling, do not block the pipeline, wide use:
3) Convenient: a pneumatic feeding system can be used in turn for more than one set of equipment;
4) Simple: automatic control, a variety of settings;
5) Health: meet the requirements of health grade, in line with GMP standards;
6) Light: small size, lightweight, easy to install;
7) Quiet: no vibration, low noise;
8) Clean: dust-free operation, refueling cleaning is easy;
9) Energy saving: using the vacuum principle, no electricity, and other energy.

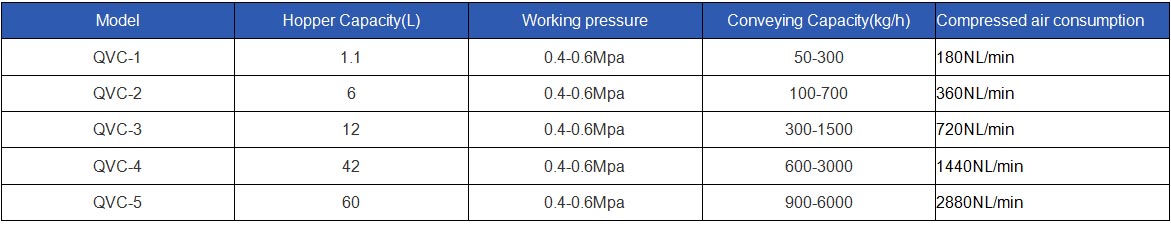

Product parameter
Schematic diagram
The pneumatic transfer systems can feed tablet press, capsule filling machine, packaging machine, vibrating screen, dry granulator, crusher, mixer, and other equipment.
Customizable parts or additional configuration
1. Support customization of various structural materials, such as carbon steel, stainless steel 304, and stainless steel 316L, and the surface treatment process can be optional mirror polishing, sandblasting, and painting.
2. The hopper of the pneumatic vacuum conveying system can be made into different sizes and dimensions according to the needs of customers to meet the diverse needs of customers.
3. The pneumatic powder transfer system can be controlled by PLC, and the system operates according to the set parameters, without manual operation, and can realize an unattended state.
4. It can be made into an explosion-proof pneumatic vacuum conveyor, such as a motor and a control box made into an explosion-proof. The coils of the solenoid valve and blowback valve can be made into explosion-proof coils to meet the requirements of users in different environments.
5. According to different discharge methods, it can be made into intermittent pneumatic transport systems and continuous pneumatic conveying system. Customers can comprehensively consider which type of vacuum transport equipment to choose according to the output and distance of conveying.
6. A bracket can be added to fix the pneumatic vacuum system to a certain height.
7. Multiple outlets of pneumatic conveying can be customized according to customer needs to realize simultaneous delivery of materials to multiple devices.
Eversun is one of the largest pneumatic conveyor manufacturers in the world and our aim is to provide our customers with the highest-quality portable pneumatic conveying system. Our products are highly regarded for generating high levels of conveying. Our pneumatic conveying equipment ensures a high level of hygiene and safety and are CGMP and FDA and CE certified.

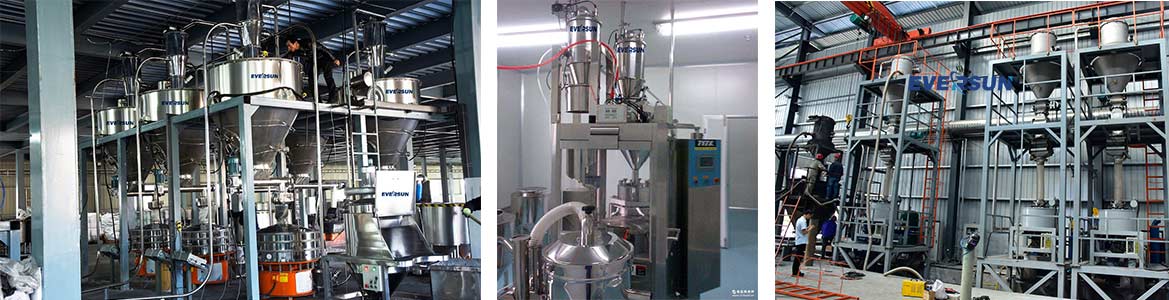

Application case
The vacuum conveying system is connected to the production line with different raw material transportation systems. The figure below shows a customer case of its dust-free delivery of material to the vibrating screen, packaging machine, and silos so as to realize the seamless transfer of powder and granular materials. If you want to know more about the application of pneumatic material conveying systems or design your product line, please contact us.
