Universal pulverizer
The universal pulverizer makes use of the high-speed relative motion between the movable tooth plate and the fixed tooth plate, so that the crushed object can be crushed by the comprehensive action of tooth impact, friction, and the impact between the materials. The machine has the advantages of a simple structure, strong, stable operation, and good crushing effect.
The crushed material can be directly discharged from the grinding chamber of the main machine. The particle size can be obtained by replacing the mesh screen with different apertures. The inner wall of the casing is machined to achieve smooth surface, which changes the phenomenon of the rough inner wall and powder accumulation of the previous models so that the production of drugs, food, the chemical industry, and so on is more in line with national standards and meet the requirements of GMP.
- Description
- Get quote
Description
Features of Universal Pulverizer
1. High-efficiency gear-tooth crushing. The turbine disk of this machine drives the movable cutter head to impact and shear the material, and the impact and friction between the material and the material, and the material and the ring gear are alternately crushed, high-speed, and fine.
2. Ordinary models are equipped with inclined buckets as standard, and models above 20B can be purchased additionally with feeding devices.

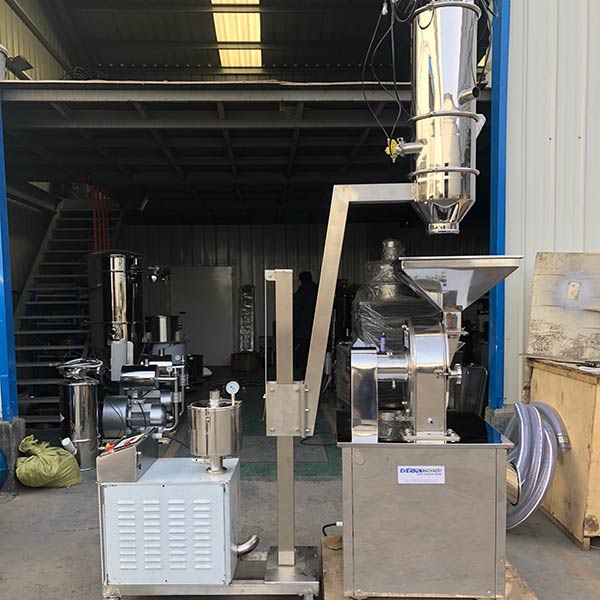

3. Automatic simplification. If a feeding device is used, a vacuum feeding machine can be used to apply the principle of negative pressure. Due to the high-speed rotation of the turbine disk in the crushing chamber, the air negative pressure at the feeding port is caused, and then the materials contained in the material box (or barrel) are sucked into the feeding pipe, and then enter the crushing chamber for crushing, easy feeding.
4. The roulette is additionally equipped with a wind blade device, which can generate strong wind force during work, and can take away a large amount of heat in the cavity, thus playing a cooling role, and can replenish the outside air in time, thus greatly improving production efficiency and yield.
5. A dust cabinet can be purchased additionally on the standard model. The dust cabinet can greatly reduce powder flying during powder discharge, making it cleaner and more comfortable.
6. The parts of the machine that are in contact with the material are made of stainless steel, with a beautiful appearance, reasonable structure, and high granulation molding rate.

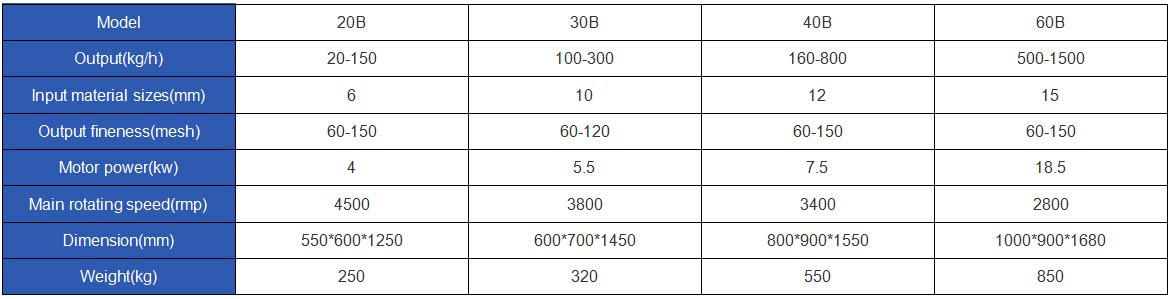

Product parameter of Universal Pulverizer
Working principle of Universal Pulverizer
Put the material into the hopper of the machine manually, or automatically convey the material into the hopper with the help of conveying equipment such as a vacuum conveyor, and then through the relatively high-speed operation between the movable toothed plate and the fixed toothed plate, the materials are impacted, rubbed, and collided with each other to be crushed, and then the crushed materials pass through the grinding chamber and are discharged from the discharge port.
The fineness of the universal pulverizer can be adjusted by replacing the screen, so as to achieve the desired fineness.
Application of Universal Pulverizer
The universal pulverizer is suitable for pharmaceutical, chemical, metallurgy, food, construction, and other industries. It can process hard and difficult materials, including crushing plastic, copper wire, Chinese herbal medicine, rubber, etc. It can also be used as supporting equipment for the pre-processing process of micro-pulverizers and ultrafine pulverizers. If you want to know more about the product, please contact us.
