V type mixer
V type mixer is the most common powder and granular material mixer in the world. It has the advantages of simple structure, easy operation, convenient maintenance and cleaning, and fast mixing speed.
The machine two cylinder length is not equal to the design of asymmetric, when the mixer rotates the material from dispersion to combination, from combination to dispersion, to promote the material transverse exchange, each turn of transverse force about 25% of the material flow from one cylinder to another cylinder, so that the material transverse radial mixing, dispersion combination each other, so that the material to achieve very uniform mixing effect.
No mechanical extrusion and strong wear, can keep the material particle integrity. Polishing inside and outside the cylinder, smooth transition, and no dead Angle, can avoid cross contamination of materials.
- Description
- Get quote
Description
Features of V type mixer
1) High mixing uniformity. Due to the use of two cylinders of different length structures, there is a time difference in the material flow inside the cylinder, so it has a very high mixing efficiency and mixing uniformity.
2) No residue, no cross-contamination. There is no dead Angle between the inside of the cylinder and the contact part of the material, and the mixing process is mild, with no segregation, complete discharge, no residue, and no cross-contamination phenomenon.
3) Feeding can be manual or equipped with a vacuum suction device, discharge using a butterfly valve device, and implements dust-free operation.
4) V type mixer consists of two asymmetric cylinders, the material can be used for vertical and horizontal flow, and mixing uniformity can reach more than 99%.
5) The cylinder is made of stainless steel plate, the inner and outer walls are polished, clean, and sanitary, and do not accumulate material.
6) The V type mixer is simple to operate, can be equipped with timing operation, and also can be used for dot operation.
7) It can be equipped with a forced agitator according to customer requirements, which is suitable for the mixing of fine powder particles and block materials containing certain moisture.

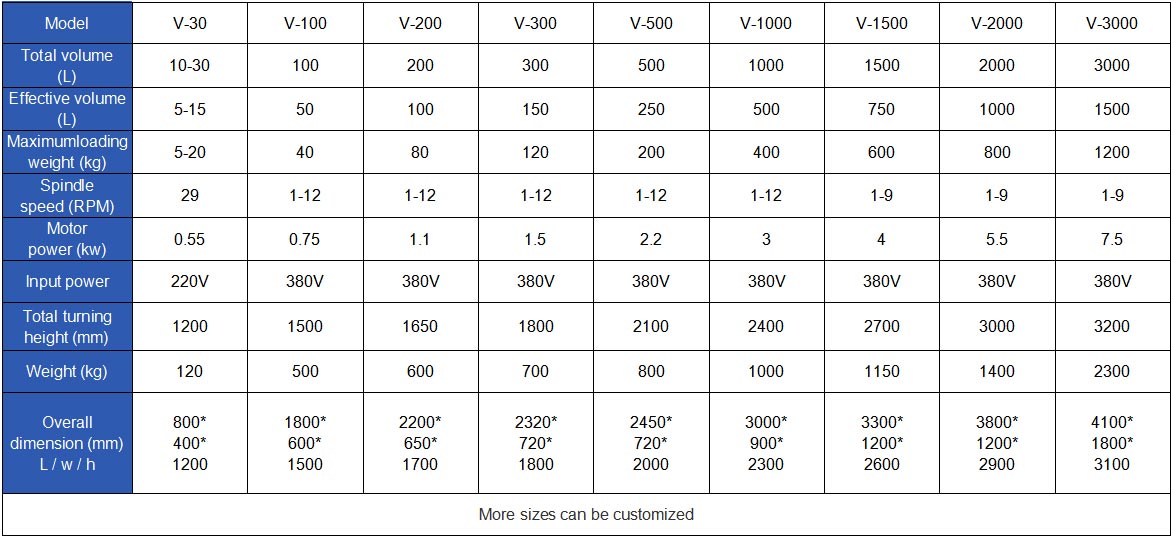

Product Parameter of V type mixer
Customizable parts or additional configuration
1. The volume, production capacity, slewing height, and materials of the machine can be customized.
2. The feeding system or feeding platform can be configured to improve work efficiency and work environment.
3. The motor is selected from internationally renowned brands with safe and reliable quality. Siemens, ABB, Guomao, and other brands can be selected. In addition, the motor can also be made into an explosion-proof motor.
4. The equipment can be configured with a safety fence according to customer requirements, which can play a role in safety protection when the equipment is running.
5. The feeding port can be equipped with manual feeding hole and vacuum feeding port, one is manual feeding, and the other can be equipped with vacuum feeding machine for automatic feeding.
6. A variety of electrical brands are optional: the electronic indicator light defaults to domestic Chint, optional brands: Schneider, Yijia, Siemens, etc., AC contactors, technical display screens, and electronic display screens, all brands are optional and support customized services.
7. Automatic discharge valve: when the mixer is discharging, it can discharge automatically, using electric valves, pneumatic valves, powder ball valves, knife gate valves, rotary valves, screw feeders, etc.
Eversun is one of the largest mixer machine manufacturers in the world and our aim is to provide our customers with the highest-quality mixer machines. Our products are highly regarded for high mixing efficiency. Our mixer machines ensure a high level of hygiene and safety and are CGMP and FDA and CE certified.
Application case of V type mixer
V type mixer is suitable for the mixing of powders with good material fluidity and little difference in physical properties. It can mix finer powders, lumps, materials containing a certain amount of moisture, and materials that do not require high mixing degrees and require short mixing time. And there is no dissolution, volatilization, or deterioration of materials during the mixing process. It will not cause mechanical extrusion and severe wear to the material and can keep the material particles intact, so it is widely used in the production lines of pharmaceutical, chemical, food, and other industries.
It is often used in conjunction with conveying equipment such as screw conveyors, vacuum feeders, etc. Compared with manual feeding, it can reduce labor intensity, improve the working environment, and prevent cross-contamination of products.
