Bulk bag packing machine
The bulk bag packing machine also called super sack packing machine, FIBC loading system, big bag filling machine, and jumbo bag Filling system, is a large-scale weighing FIBC packing machine for ton bag packaging materials. Big bag packing machine is a multi-purpose packaging machine integrating electronic weighing, automatic bag removal, and dust removal. Big bag filler has a high degree of automation, high packaging precision, adjustable packaging speed, and superior structure. The unique hydraulic lifting system is particularly easy for handling ton bag packaging, and Big bag loader is very convenient for subsequent processes.
The super sack filler is suitable for the bulk bag, big bag, jumbo bag, FIBC, and super sack packaging of materials in the mineral, chemical, building materials, grain, and feed industries, and can realize automatic bag loading, material weighing, and filling of bulk bags.
- Description
- Get quote
Description
Function and Features of Bulk bag packing machine
1. Programmable electronic control system, the control process of super sack loader is highly reliable.
2. Automatic off the bag, reduce labor intensity.
3. The weighing system of the jumbo bag bagging machine is an electronic scale platform scale measurement, which adopts digital adjustment and parameter setting and has a weight accumulation display, automatic tare, automatic zero calibration, automatic drop correction, and other functions.
4. Bulk Bag Filling Systems equipped with high-precision AC power supply to ensure stable and reliable working.
5. Contact parts of Bulk bag filler are made of stainless steel, with long service life.
6. The bulk bag filling equipment is equipped with a communication interface, which is convenient for online networking, and can realize monitoring and network management.
7. Production date, batch number, and other data automatic code printing.
8. Automatic heat sealing of the opening of the ton bag.
9. Automatic transportation and analysis of bulk bag, big bag, jumbo bag, FIBC, and super sack.
10. The conveyor of the bulk bag packing machine is optional.

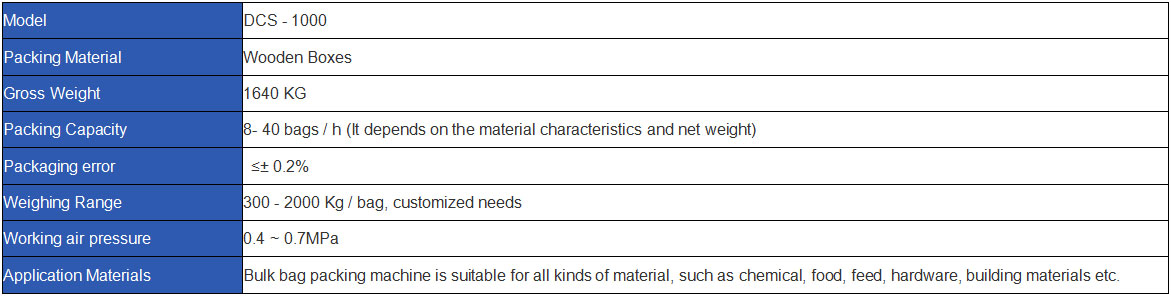

Product parameter
Working process
First, manually hang the jumbo bag on the four hooks of the Big bag bagging machine, and then press the “bagging” button, the lifting frame of the jumbo bag filler will automatically drop to the bagging position, and then the bag-pressing cylinder will start to work and hold down At the mouth of the bag, the cylinder will open the four corners of the big bag, and then the control system of the big bag packaging machine will automatically peel the weight of the big bag, and then the bag will start to be fed, and the dust that overflows with the air in the bag will pass through the vacuum cleaner. The dust collector sucks it away, and when the feeding reaches the set weight, the feeding will stop automatically, then the bag pressing cylinder will loosen the mouth of the jumbo bag, and finally press the conveying button starts the conveyor to convey the packed jumbo bag.
Eversun is one of the largest super sack Filling system manufacturers in the world and our aim is to provide our customers with the highest-quality super sack bagging machine. Our products are highly regarded for generating high levels of super sack loading system. Our FIBC filling machine ensures a high level of hygiene and safety and are CGMP and FDA and CE certified.
Application case
Bulk bag loader can be applied to any production line that needs big bag packaging and can perfectly replace semi-automatic manual jumbo bag loader. Both granular materials and powder materials can be transported in automatic boxes by using the automatic Big bag loading system. With the increase in labor cost, the application and promotion scope of the Bulk bag loading system is increasing. Contact us to help you design your production line of FIBC filler.
