Ultrafine grinder
The ultrafine grinder uses air separation, heavy grinding, and shearing form to achieve the dry material ultramicro grinding equipment. It is composed of a cylindrical grinding chamber, grinding wheel, grinding rail, fan, material collection system, and so on. The material enters the cylindrical grinding chamber through the feeding port and is crushed by the grinding wheel which moves in a circle along the grinding rail. The crushed material is taken out of the crushing chamber through the negative pressure air flow caused by the fan and into the material collection system. The air is filtered through the filter bag, and the material and dust are collected to complete the crushing. Because the host motor and the extension motor adopt frequency conversion control technology, the user can adjust freely in different fineness ranges, to better meet a variety of fineness requirements.
The ultrafine grinder is a kind of ultrafine grinder designed and manufactured by our company. The crushing of materials and the classification of powder particles are installed in the same body, and they operate independently.
- Description
- Get quote
Description
Features of Ultrafine grinder
EVERSUN’s professional production technology and research and development level make our ultrafine grinder have the following characteristics:
1. Complete functions, compact structure, stable technical performance, low power consumption, wide application range, no dust, adjustable powder fineness (80-400 mesh).
2. The cyclone separator adopts a three-stage detachable type. Compared with the non-detachable type of the traditional ultrafine pulverizer, it is more convenient to clean and easy to maintain.
4. Widely used in food, pharmaceutical, chemical, energy, FD fruit and vegetable powder, powder coating, spices, catalysts, polyethylene glycol, and other industries in different fields of ultrafine grinding.
5. The crushing and grading of materials to finished products are all carried out in the same closed system. There is no pollution in the crushing process after pulse dust removal.
6. The fineness of the crushed material is uniform, and the qualified rate of the finished product is more than 99%.
7. Without stopping the machine, the fineness can be adjusted arbitrarily.

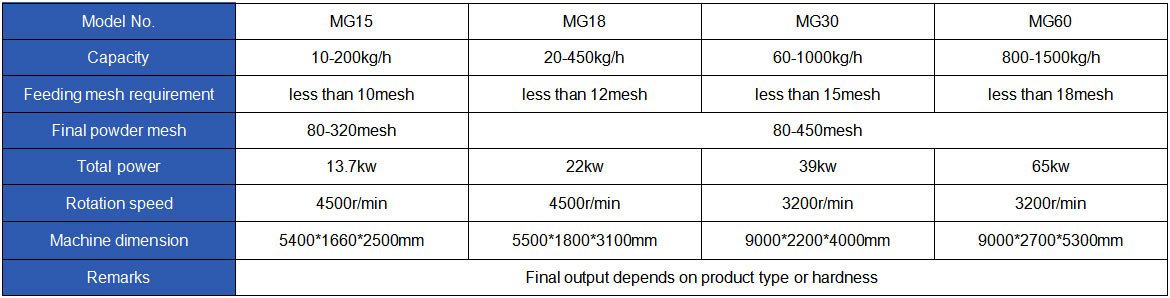

Product parameter of Ultrafine grinder
Working principle of Ultrafine grinder
The ultrafine grinder is mainly composed of a feed motor, a feed adjustment plate, a feed inlet, a pulverizer cavity, a classification motor, a pipeline, a cyclone separator, an unloader, a dust removal box, and a unloader. When working, first start the motor, open the valve of the hopper, and then put in the material, then the material enters the crushing chamber from the material door through the screw conveyor, and the high-speed rotating blade will cut and crush the material, and finally, the crushed material is separated by the classifying wheel to meet the fineness The required product enters the cyclone separator, and the cyclone separator separates the dust from the airflow and discharges the material, while the dust separated by the cyclone separator enters the dust removal box, and is filtered and recovered by a cloth bag or a filter cartridge. The whole working process is airtight without dust flying.
Application case of Ultrafine grinder
MG series models can be widely used in Chinese medicine, western medicine, pesticides, biology, cosmetics, food, feed, chemical, ceramics, and other industries of dry materials ultrafine grinding demand. Especially for fiber, high toughness, such as cordyceps, tea, ganoderma, and other materials, the crushing effect is perfect.

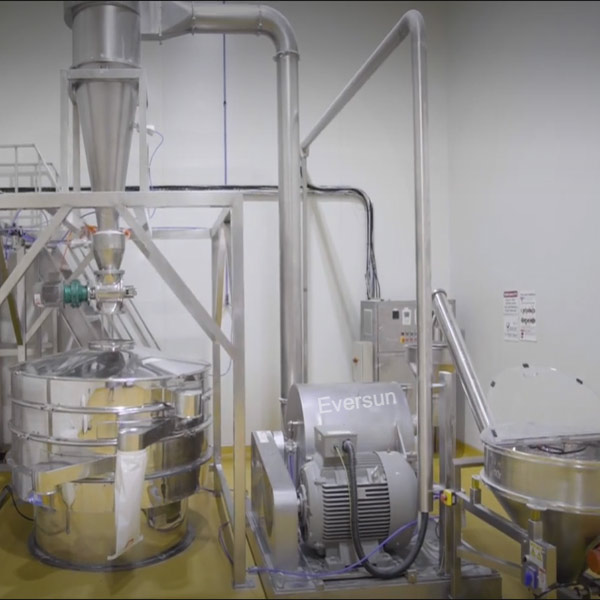

In the product crushing production line, the ultrafine pulverizer is often used in conjunction with conveying equipment such as bucket elevators or other conveying equipment to achieve dust-free operation of feeding materials to the pulverizer, and the ultrafine pulverizer is often used in conjunction with screening equipment, to ensure that nearly equal material particles are obtained after the material is crushed. If you want to know more about the application of this product, please contact us.
