Conical screw mixer
Conical screw mixer is a new type of high-efficiency and high-precision mixing equipment, which is widely used in mixing, reacting, and drying powder and powder (solid-solid), powder and liquid (solid-liquid), liquid and liquid (liquid-liquid) in the chemical industry, medicine, pesticide, dyestuff, petroleum, metallurgy, building materials, etc., cool down. The machine has wide adaptability to mixed materials, will not produce overheating for heat-sensitive materials, will not feed and grind granular materials, and will not produce layered segregation when mixing materials with different specific gravity and different particle sizes. The machine also has good adaptability to the mixing of coarse, fine, and ultrafine powders, fibers, or flakes.
According to the process requirements, the machine can add a jacket outside the barrel of the mixer, and cool or heat the material by injecting cold and hot media into the jacket; cooling is generally pumped into industrial water, heating can be fed into steam or electric heating heat transfer oil. The material of the machine can be selected from ordinary carbon steel and stainless steel. If the material is too corrosive, you can choose high-standard stainless steel or choose a lining with a corrosion-resistant layer. The surface treatment can be rough polishing, fine polishing, and mirror polishing.
- Description
- Get quote
Description
Features of Conical screw mixer
1. The surface is smooth and flat, wear-resistant and corrosion-resistant, durable, and widely suitable for food, medicine, pesticide, compound fertilizer, feed, the chemical industry, and other fields.
2. Short mixing time, high efficiency, can increase the efficiency by 2-3 times, and the mixing capacity is large, the charging coefficient is 20-30% higher than that of the drum type and 25-40% higher than that of the V-type mixer.
3. The mixing precision is high, the energy consumption is low, which can be reduced by about one-half (in terms of the material per unit weight), and the height of the mixer shell is low.
4. The discharge of material at the bottom is fast, the discharge is clean and neat, the bottom can be tightly closed, no material leakage, and the dead angle of material mixing can be reduced to a minimum.
5. The equipment is easy to clean, easy to replace the type of mixed materials, and reduces the maintenance work of the bottom bearing of the equipment, which is conducive to the development of the equipment in the direction of large-scale.
6. Functional options: dust removal, ventilation, and drying, explosion-proof, frequency conversion, weighing, material level sensing, cover opening sensor, etc.

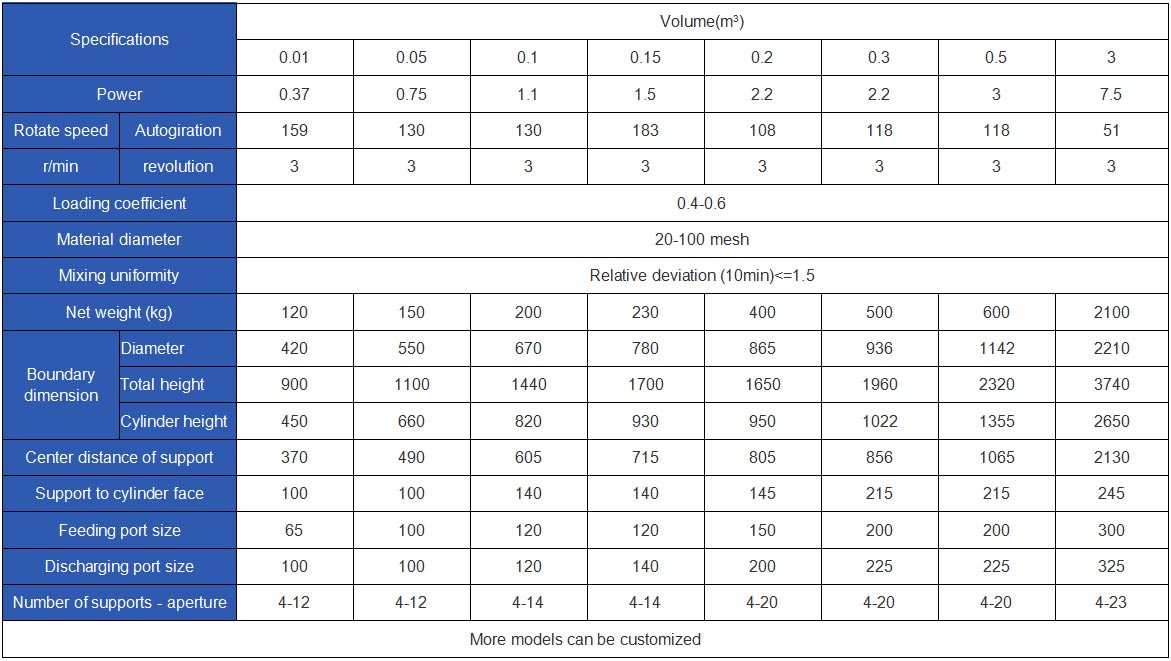

Product parameter of Conical screw mixer
Working principle of Conical screw mixer
Driven by the double helix to the cantilever, it rotates around the central axis of the cylinder to form a revolution. The self-rotating screw rotates the blades to lift the material upwards, and the cantilever revolves at a slow speed to make the material circularly move. The spiral revolution and rotation cooperate with each other to absorb the material by the spiral rotation and disperse it in the circumferential direction at the same time. The material flow lifted from the rotation to the upper part converges to the center, and flows downward under the force of gravity in the center to fill the vacant zone at the bottom, thus forming an overall circulation and mixing. If you want to know more about our conical screw mixer, please contact us.
Optional configuration of Conical screw mixer
1. The screw inside the machine adopts a double stirring screw, and can also be equipped with single or triple screw according to customer requirements.
2. A jacket can be added outside the cylinder, and the cooling or heating function of the material can be realized by injecting cold and hot media into the jacket.
3. The cylinder cover can be made into a dome to improve the compressive strength of the cylinder body.
4. Discharging method: manual, pneumatic, electric.
5. Material: carbon steel, stainless steel (SUS304/316L) for parts in contact with materials, all stainless steel, and can be coated inside.
6. There are many options for the discharge method: plum blossom valve, butterfly valve, ball valve, side discharge valve, etc.
7. Cylinder opening: standard flange opening, quick opening feeding port, dust collector port, manual feeding port.
8. Drive mode: single motor or double motor drive form is optional.
Eversun is one of the largest mixer machine manufacturers in the world and our aim is to provide our customers with the highest-quality mixer machines. Our products are highly regarded for high mixing efficiency. Our mixer machines ensure a high level of hygiene and safety and are CGMP and FDA and CE certified.
