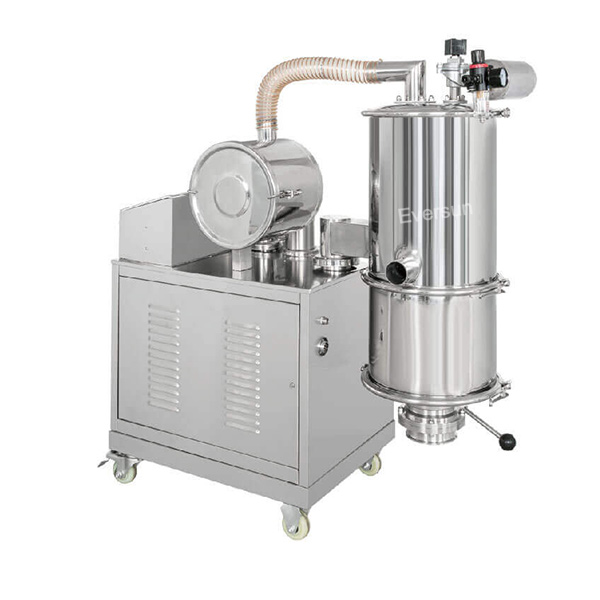

Vacuum conveyor
The vacuum conveyor is a kind of conveying equipment driven by compressed air, which is generated by a multi-stage jet vacuum pump and conveys granular and powdery materials by means of vacuum suction. The vacuum conveying system for powder is equipped with a compressed air blowback device, every time the material is discharged, the compressed air pulse blows back the filter to knock down the powder adsorbed on the surface of the filter to ensure the normal operation of the suction.
It is widely used in the fields of lithium battery new energy, pharmaceuticals, food, chemicals, ceramics, feed, pigments, dyes, agricultural products production and scientific research.
- Description
- Get quote
Description
Features of Vacuum conveyor
1. Fully enclosed transportation, avoiding dust, and fundamentally eliminating the influence of the outside world on materials
2. The pressure conveying system has a strong conveying capacity and can complete the entire conveying and feeding process in a relatively short period of time.
3. The powder conveying system can set the suction and discharge time and the number of blowback times by itself.
4. The interior is smooth and has no dead corners and no material residue.
5. The installation and disassembly of the machine are relatively convenient.
6. The operation of the powder vacuum conveyor is relatively simple. It can be controlled by the control box, we also support custom control cabinets.
7. The degree of automation is high, and it is easy to form an automatic production process with upstream and downstream equipment.
8. The vacuum transfer system for powder can not only improve work efficiency, but also solve the problems of moisture, pollution, and omission of raw materials during the transportation process, fully realize the automation and intelligence of feeding, and reduce the risk of high-altitude feeding and the labor intensity of workers.
Eversun is one of the largest vacuum conveyor manufacturers in the world and our aim is to provide our customers with the highest-quality portable material vacuum transfer systems. Our products are highly regarded for high levels of lean phase conveying. Our material vacuum transfer systems ensure a high level of hygiene and safety and are CGMP and FDA and CE certified.

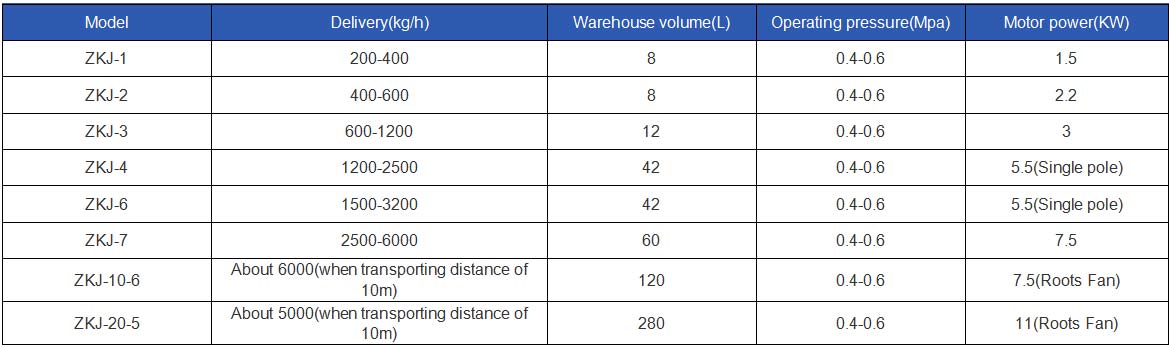

Product parameter of Vacuum conveyor
Customizable parts or additional configuration
1. Support customization of various structural materials, such as carbon steel, stainless steel 304, and stainless steel 316L, and the surface treatment process can be optional mirror polishing, sandblasting, and painting.
2. The hopper of the portable vacuum transfer system can be made into different sizes and dimensions according to the needs of customers to meet the diverse needs of customers.
3. The machine can be controlled by PLC, and the system operates according to the set parameters, without manual operation, and can realize an unattended state.
4. It can be made into an explosion-proof vacuum conveyor, such as a motor and a control box made into an explosion-proof. The coils of the solenoid valve and blowback valve can be made into explosion-proof coils to meet the requirements of users in different environments.
5. According to different discharge methods, it can be made into intermittent vacuum conveyor and continuous vacuum conveyor. Customers can comprehensively consider which type of vacuum conveyor to choose according to the output and distance of conveying.
6. A bracket can be added to fix the mobile vacuum conveying systems to a certain height.
7. Multiple outlets can be customized according to customer needs to realize simultaneous delivery of materials to multiple devices.
8. There are three types of power sources for vacuum conveyors: Roots blower, Scroll vacuum pump, and Sanitary vacuum pump trolley, customers can choose flexibly.
9. We support custom-made twin continuous vacuum conveyors, also known as double-head vacuum suction machines and double-cabin filter negative pressure conveyors, to achieve continuous suction and alternate discharge.

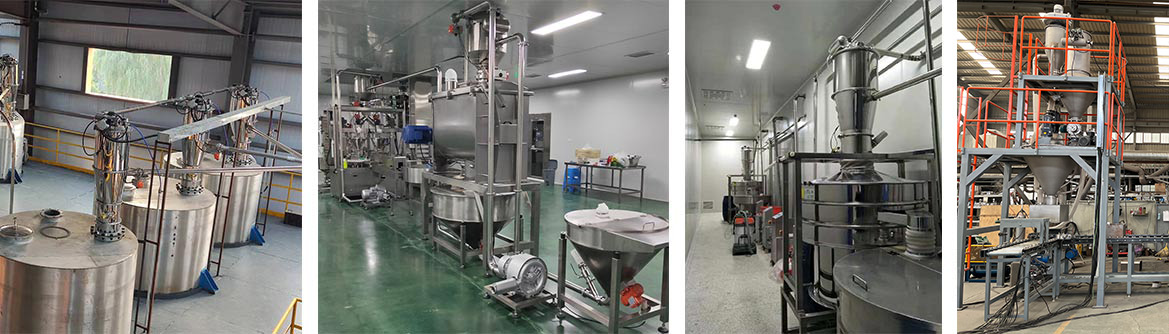

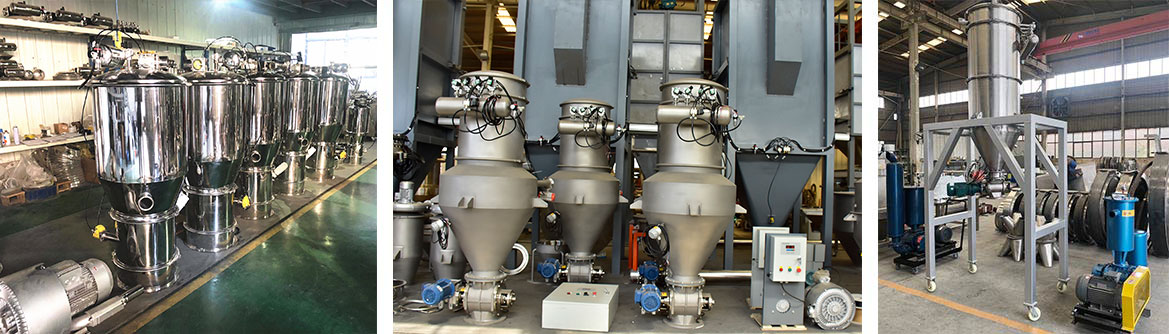

Application case of Vacuum conveyor
The vacuum feeder is connected to the production line with different raw material transportation systems. It can convey materials dust-free for storage silos, mixers, screening machines, packaging machines, etc, so as to realize the seamless transfer of powder and granular materials. If you want to design your product line, please contact us.
